Key Features

Main spindle is made of "EN9" material & Hardness.
MT-bore-internally grinded.
Accurancy and run out of 0.01 to 0.03 is main spindle shafts.
Pinion Shafts is made of "EN8" material and hardness.
Provided 4-8 Speeds by accurate balancing.
Spindle Sleeve-grinded.
By simple adjustment of only wedge facility to set drill head on column guide way.
Work light [As per requirement]
Box work table [As per requirement]
Auto feed [4/0.10 To 0.25mm]
Coolant system [As per Requirement]
Adjustable depth control [with auto stop]
Nitride hardened "RAM"
All gears are made of alloy steel [Gear Material] Heat treatment [50 to 60 HRC] hardened & Lapped running in oil bath fitted with splined shafts.
Ram is accurately grinded and honing process is done in the bore body containing ram.
All the gears assemble in the machine in the are perfectly sized according to requirement [Precision gears]
All Bearing [SKF & NBC Bearing]
All Electrical parts are good quality.[Company : L&T]
Pinion and worm is grinded as per the sizes required
Square column guide surface R precision scraping process
Precision ground alloy gears
Spindle reverse and tapping control (as per required)
Specially spring type balanced spindle travel
Emergency stop button
Auto/Manual feed options
Drilling last Capacity.:50mm
Heavy Duty structures
Strongly ribbed and thick walled base plate having built-in coolant tank. arm for maximum rigidity and minimum deflection
Size of T-slots : 4/200MM.Wooden case available on demand.

Standard Accessories:

Electrical consisting of two motors, contractors, limit switches, control transformers, wiring Etc.
Instruction and Operating Manual

Box Table
Coolant Equipment consisting of Coolant Pump with motor,On/Off Switch,Built in tank,piping and Spout,
Machine Light (Without Lamp)
Drill Sleeve
Vice
Drill Chuck with key & arbor
Special T- bolts
Wooden Box Packing & Forwarding

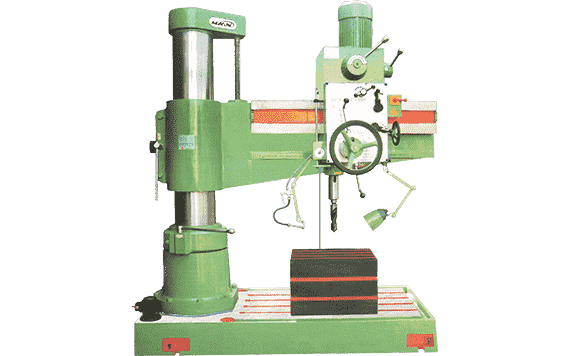

Sr No.		Model No.	MAAN 50x16/1300
A		Capacity	50 mm.
B		Drilling Capacity in Solid
	1	In Steel Having 600Mpa Tensile Strength	50mm.
	2	In Cast Iron having 180BHN	60mm.
C		Tapping Capacity
	1	Metric Threads up to size (mm)	32mm.
	2	Any Other Threads (Inch)	1/1/4 Fine Pitch.
D		Boring in Steel	120 mm.
E		Drilling in Head
	1	Taper in Spindle – [Nose]	MT – 5
	2	Spindle travels – Auto/Manual	325mm.
	3	No. of Spindle Speeds/Range	16/35 – 2000 RPM
	4	No. of Auto Feeds	4/0.10 – 0.25
F		Electrical
	1	Power Supply	415V, 3 PH, 50Hz
	2	Drilling Head Two Speed Motor	5HP
	3	Arm Elevating Motor	2HP
	4	Coolant Pump
G		Working Range
	1	Drilling Radius Min./Max.	500/1450
	2	Distance between base plate to Spindle Min./Max.(Spindle Retracted)	395/1300
	3	Drilling Head Traverse Max (Manual)	800mm
	4	Column Sleeve Diameter	300mm
	5	Vertical Traverse of Arm (Auto)	725mm
	6	Rotation of Arm (Both Side)	0-180DEG.
H		Base Plate
	1	Working surface (L x W)	1300 x 800
	2	Overall Size	2000x970x200
	3	No. of T-Slots & Nominal Size	4/22
	4	Weight of Machine with Electricals & Standard Accessories(Approx) Net/Cross	3500Kg.
I		Space Required by Machine (LxWxH) mm.	2300x1000x2750
J		Box Table Size (LxWxH) mm.	600x500x380
K		Colour(s)	MAAN GREEN (SPECIAL)

Note : All the above designs,dimensions and details are approximate only and we reserve the right to alter them without prior notice as we are improving the design.
